Description
| Form Factor | 117 x 112 x 34.2 mm | |
| CPU | Intel Alder Lake N100(4 Cores, 4 Threads, 6MB Cache, up to 3.4 GHz) | |
| TDP 6W | ||
| Video Engine Processor | Intel UHD Graphics 12th | |
| Memory | One channel DDR5 SODIMM, 4800MT/s, up to 16GB | |
| Audio | HDA CODEC | |
| Storage | 1 x SSD (2280 M.2 SATA & PCIE Gen 3*4), 512G, up to 1TB | |
| I/O Port | 1 x USB 3.2 Gen 2 x 1 port(front panel) and 2 x USB 3.2 Gen 2 port(back panel) | |
| 1 x TYPE-C with DP 1.4 Alt Mode(back panel) and 1 x TYPE-C Data Only(front panel） | ||
| 1 x SD card reader | ||
| 1 x 3.5 mm headphone jack (front panel, support Apple HeadPhone) | ||
| 1 x RJ45(back panel) | ||
| 1 x HDMI 2.0(back panel) | ||
| 1 x Mini DP 1.4(back panel) | ||
| 1 x DC in(back panel) | ||
| 1 x PowerButton | ||
| 1 x Kensington Lock | ||
| Internal Connector | 1 x M.2 key-M slot(PCIe/SATA) | |
| 1 x FAN | ||
| 1 x RTC | ||
| 1 x USB2 | ||
| LED | 1 x POWER LED(Power On: Blue, S3: Flashing Orange) | |
| 1 x SATA SSD:Red PCIE SSD:Green | ||
| Ethernet | Intel® 10/100/1000 Mbps Ethernet | |
| LED | 10-100M: Flashing Orange, Green, 1000M: Flashing Orange, Green No light | |
| Wireless LAN | onboard WiFi6, BT5.2 AW-XM548NF | |
| Kensington Lock | Yes | |
| Battery | RTC coin battery | |
| Adapter | Automatics Voltage adjustment between 100 and 240V AC, 50/60Hz, 45Watts(19V/2.36A), 3Pin, 1.8 meters long & 65W(19V/3.42A) | |
| PCBA Dimension | 109.1 x 107.63 mm | |
| Certification | CE, RoHS, FCC, CEC, CB, PSE, TELEC | |
| Operating system | Windows 11 21H2, PRO | |

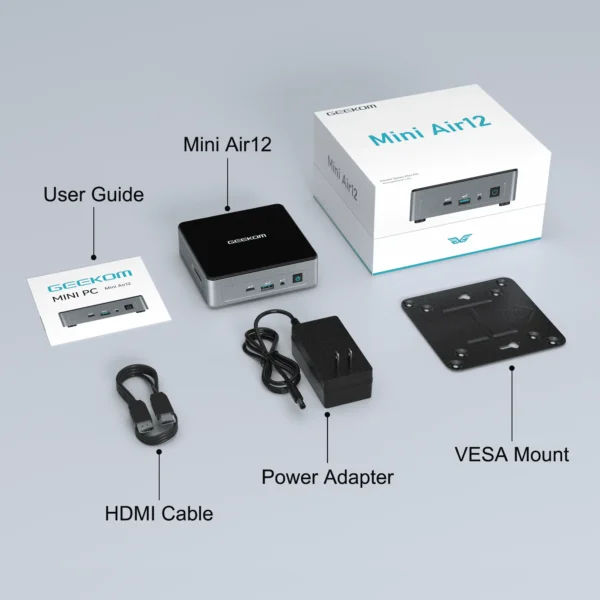

| Accessory | VESA Mount | |
